Power & Performance

• Design: 2-driver, 2-way in-ceiling, Marine/Extreme Weather Application, SHOCK-MOUNT™ Isolation System
• Crossover: 2nd-order electro-acoustic at 2.5 kHz
• Frequency Response (On-Axis): +/- 3 dB from 64 Hz – 22 kHz
• Frequency Response (30° Off-Axis): +/- 3 dB from 64 Hz – 18 kHz
• Sensitivity (Room / Anechoic): 92 dB / 88 dB
• Impedance: Compatible with 8 Ohms
• Low Frequency Extension: 39 Hz (DIN)
• Suitable Amplifier Power Range: 15 – 110 Watts
• Maximum Input Power: 80 Watts
• Performance: The Paradigm P80-RX is the ultimate "Extreme Environment" solution for those who demand uncompromising, full-scale audio in challenging locations. While it shares the "RX" weather-proofing of its smaller 6.5-inch sibling, the P80-RX utilizes a massive 8-inch CARBON-X™ driver to deliver a staggering 39 Hz low-frequency extension. It is the definitive choice for large yachts, grand master-suite spas, or expansive covered outdoor lanais where you need the authoritative "slam" and refined detail of a reference-grade monitor in a format built to survive high humidity and salt air.

Audio Features & Drivers

• AL-MAC™ Aluminum-Magnesium-Ceramic Tweeter: Features a 1-inch (25mm) dome crafted from a proprietary blend of Aluminum, Magnesium, and Ceramic. This material provides the extreme stiffness needed for surgical accuracy and natural anti-resonance, ensuring that high frequencies remain clear and detailed even in noisy outdoor or marine environments.
• CARBON-X™ Bass/Midrange Cone: Equipped with a high-excursion 8-inch (20.3cm) carbon-infused cone. This driver material offers a superior stiffness-to-mass ratio, allowing for deep, punchy bass and a transparent midrange that brings vocals to life.
• PPA™ Tweeter Lens: Features the exclusive Perforated Phase-Aligning Tweeter Lens. This tech acts as a phase plug to smooth high-frequency dispersion and provides a rugged physical shield to protect the delicate AL-MAC™ dome from the elements.
• RED™ (Reduced Edge Diffraction) Technology: The tweeter housing is designed to reduce the adverse effects of diffraction while acting as an integrated heat sink. This improves midrange clarity and allows for higher power handling in extreme climates.
• ART™ (Active Ridge Technology) Surrounds: Patented overmolded surrounds are bonded directly to the CARBON-X™ cone, allowing for 50% greater excursion (3dB gain in output). This gives the P80-RX the low-end authority needed to overcome the acoustic "thinness" of open-air spaces.
• Advanced SHOCK-MOUNT™ System: A mechanical decoupling system that isolates the die-cast aluminum driver basket from the baffle. This prevents vibrations from being transferred into the ceiling or boat hull, ensuring the sound remains pure and free of mechanical noise.

Streaming & Connectivity

• Nickel-Plated Spring-Loaded Binding Posts: Features heavy-duty terminals with larger wire holes to accommodate high-gauge marine-grade speaker wire. The nickel plating is specifically chosen for its superior resistance to oxidation and salt-air corrosion.
• Weather-Sealed Engineering: The internal crossover and motor structure are treated for high-moisture resistance, ensuring long-term electrical integrity in bathrooms, saunas, or coastal installations.
• Professional Integration: Designed to be powered by high-current amplifiers. When paired with Anthem® electronics, the P80-RX can utilize ARC® (Anthem Room Correction) to overcome the harsh reflections typical of tiled or fiberglass-heavy environments.
• Universal 8-Ohm Stability: Presents a stable, easy-to-drive load for modern multi-zone amplifiers and marine-rated streaming systems.

Comfort & Dimensions

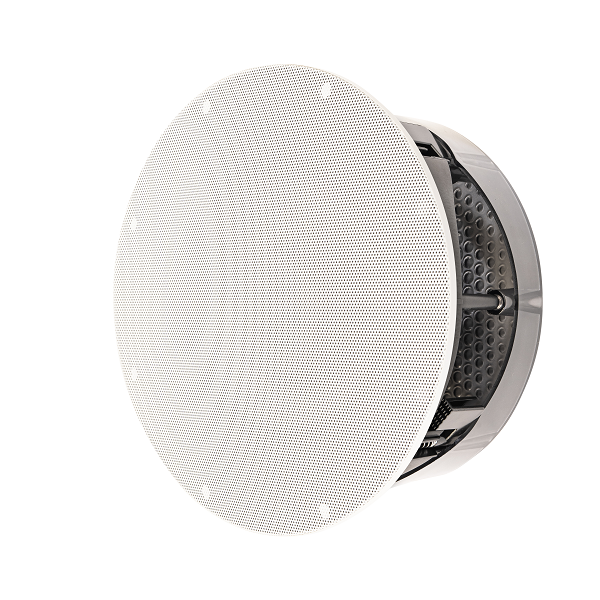

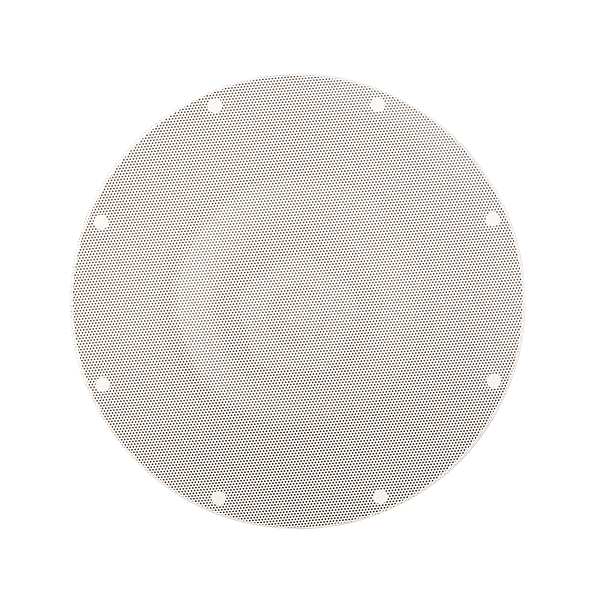

• Bezel-Free Micro-Perf Grille: Features a magnetically attached white grille that sits flush against the ceiling. The grille is treated with a specialized anti-corrosion coating to prevent rust in high-humidity areas.
• Rigid Nylon-Blended Baffle: The baffle is constructed from a high-strength, UV-resistant nylon material that provides a stable, resonance-free platform for the 8-inch driver.
• Overall Dimensions: 10.25" (26.1cm) Diameter x 4.5" (11.4cm) Depth.
• Cut-Out Dimensions: 9.1875" (23.4cm) Diameter.
• Minimum Mounting Depth: Requires 3.875" (9.8cm) of clearance—a remarkably slim depth for a high-output 8-inch marine speaker.
• Unit Weight: 6.4 lbs (2.9 kg) per speaker.

Design & Build

• Marine Application Optimized: Every component is selected for its ability to withstand extreme temperature cycling and humidity, making it the "custom installer's smarter choice" for premium outdoor and marine projects.
• FEA-Optimized Cast-Aluminum Baskets: The ultra-rigid driver baskets feature integrated heat sinks for superior thermal management, allowing the speaker to maintain high output levels without power compression.

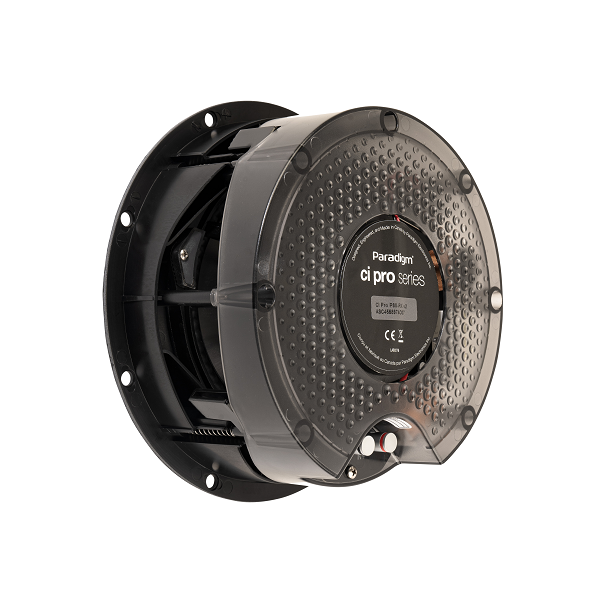

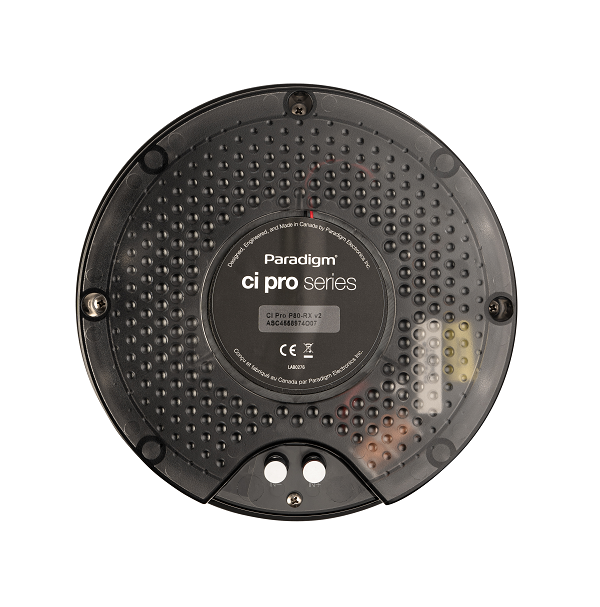

• Rear Component Shielding: Includes a polycarbonate rear cover that protects the crossover and internal wiring from moisture, dust, and insulation.
• Magnetically Attached Grilles: High-strength neodymium magnets hold the grilles firmly in place, ensuring they stay secure even in the high-vibration environment of a moving yacht.
• Hand-Built in Canada: Meticulously assembled and tested in Paradigm’s facility in Canada to ensure a lifetime of reference-level performance in any environment.

Paradigm speakers are warranted to be and remain free of manufacturing and/or material defects for a period of outlined below from the date of original purchase. Within the time period specified, repair, replacement or adjustment of parts for manufacturing and/or material defects will be free of charge to the original owner. Thermal or mechanical abuse/misuse is not covered under warranty.

The warranty period on Paradigm speakers is as follows:

• Bookshelf, floorstanding, in-wall & in-ceiling speakers — five (5) years
• Powered Subwoofers — three (3) years
• Outdoor Rock speakers — five (5) years
• Stylus Outdoor speakers — two (2) years
• Powered Speakers — one (1) year
• SHIFT Series products — one (1) year

Warranty begins on date of purchase from Paradigm or an Authorized Paradigm Dealer.

This warranty applies only to purchases made from authorized Paradigm dealers in Canada and the United States. For warranty terms, conditions and support elsewhere, please contact the authorized Paradigm distributor in the country where you made your purchase. Warranty outside Canada and the US is established and provided by our authorized distributors around the world.

Limitations:

• Warranty begins on date of original retail purchase from an Authorized Paradigm® Dealer only. It is not transferable;
• Warranty applies to product in normal home use only. If product is subjected to any of the conditions outlined in the next section, warranty is void;
• Warranty does not apply if the product is used in professional or commercial applications.

Warranty is Void if:

• The product has been abused (intentionally or accidentally);
• The product has been used in conjunction with unsuitable or faulty equipment;
• The product has been subjected to damaging signals, derangement in transport, mechanical damage or any abnormal conditions;
• The product (including cabinet) has been tampered with or damaged by an unauthorized service facility;
• The serial number has been removed or defaced.

Owner Responsibilities:

• Provide normal/reasonable operating care and maintenance;
• Provide or pay for transportation charges for product to service facility;
• Provide proof of purchase (your sales receipt given at time of purchase from your Authorized Paradigm® Dealer must be retained for proof-of purchase date).

Should servicing be required, contact your nearest Authorized Paradigm® Dealer, Paradigm Electronics Inc. or Import Distributor (outside the U.S. and Canada) to arrange, bring in or ship prepaid, any defective unit. Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any obligation to modify any product previously manufactured. This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm Electronics Inc., their agents or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.

Retain your sales receipt for proof of warranty term and proof of purchase.
